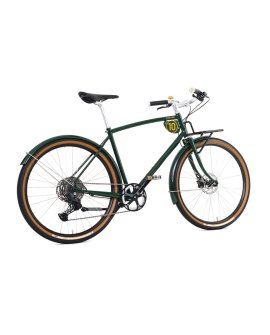

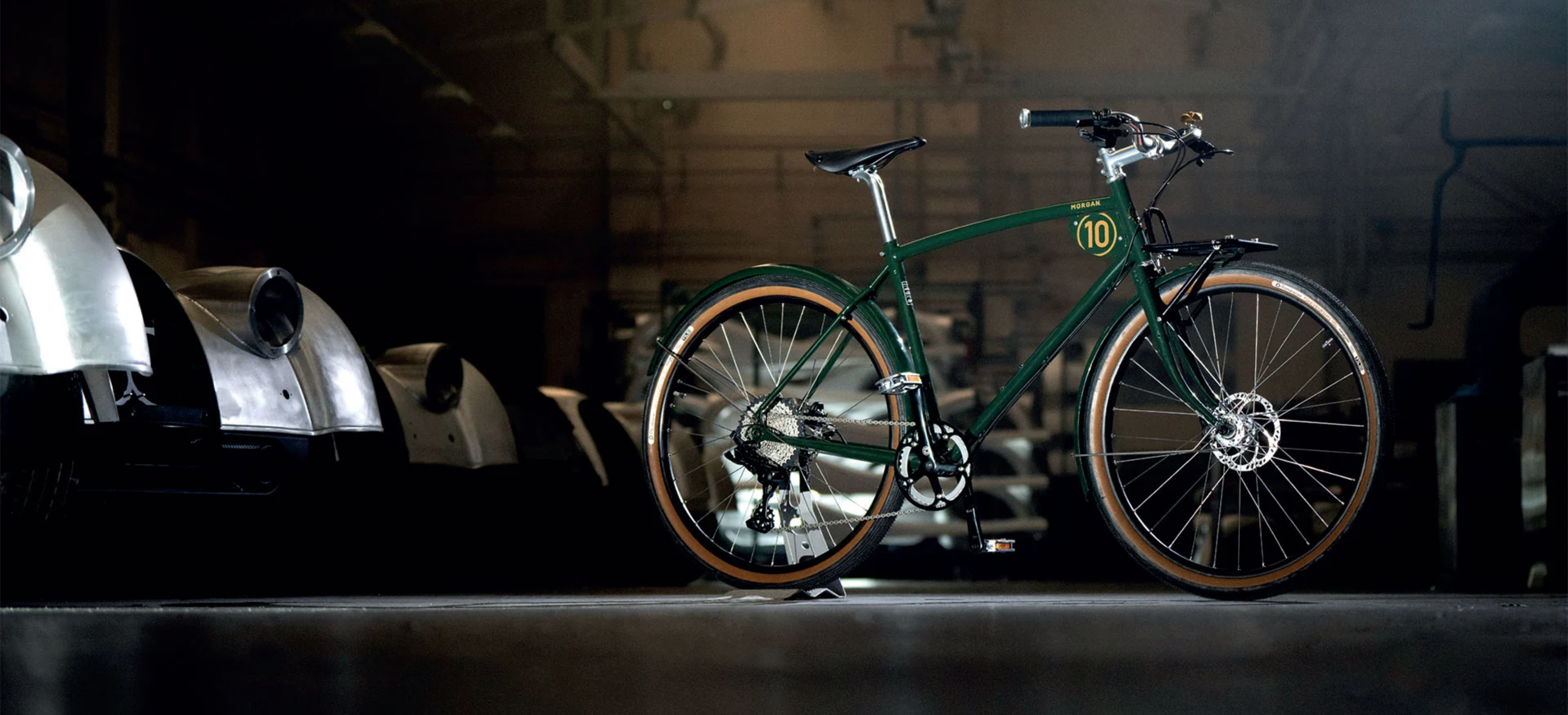

Morgan 10

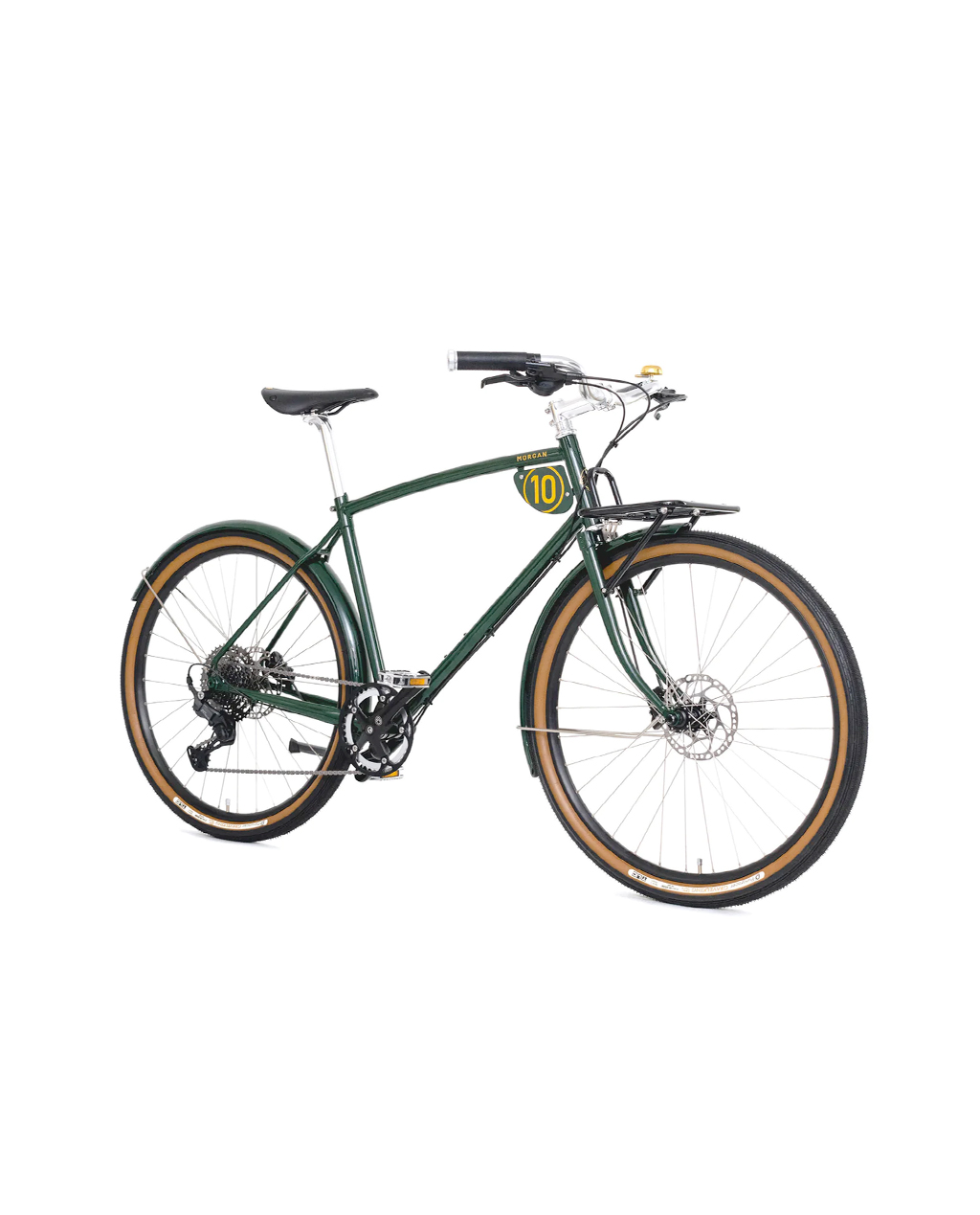

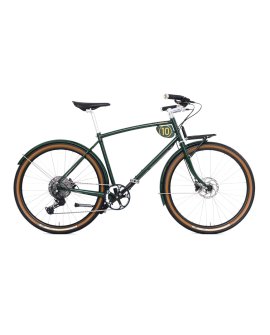

The Pashley-Morgan 10 is the latest addition to the range. It effortlessly marries the distinctive Pashley-Morgan silhouette with more modern componentry and added practicality. This makes for a bike equally suited to city commutes or exploring green lanes and cycleways.

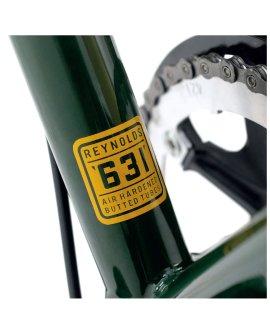

The Pashley-Morgan 10’s frame is fillet brazed by Pashley’s time-served craftsmen using Reynolds 631 tubing and incorporates a custom-formed curved top tube, distinctive S-bend seat stays and unique thru axle dropouts.

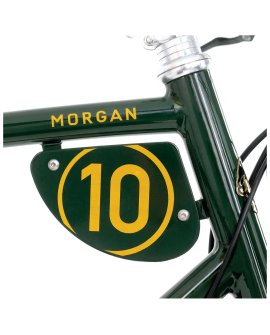

The frame mounted race plate draws inspiration from Morgan’s racing heritage while proudly displaying the distinctive yellow ‘10’ roundel. The 10 is built with practicality in mind. It features full length colour matched aluminium mudguards with sturdy stainless steel stays and hardware to fend off the worst of the British weather. A prop stand adds convenience, and the unique front rack adds carrying capacity.
The Brooks Cambium saddle brings comfort right out of the box and is combined with raised handlebars and hand stitched leather grips to give a commanding ride experience.

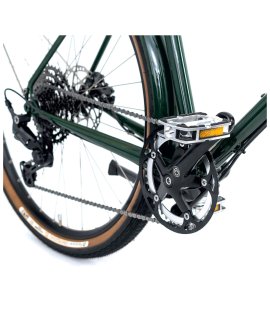

A broad range 10 speed derailleur gear system allows you to keep pace on the flat but maintain momentum when the road points upward. Hydraulic brakes ensure powerful and predictable deceleration on the descent.
| Colour | British Racing Green |

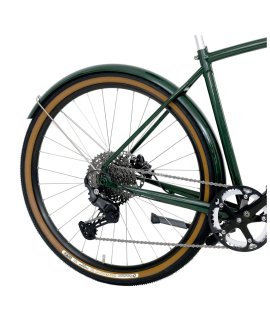

| Gears | Shimano Cues 10 derailleur and rapid fire shifter. 11-43 cassette. |
| Frame | | Hand-crafted beaded fillet brazed frame made using Reynolds 631 with custom formed toptube, frame mounted race plate, distinctive S-bend seatstays and unique thru axle dropouts with 12x142mm rear spacing. |
|
|
| Fork | | Lugged and brazed Chromoly fork with investment cast double plate style crown. 12x100mm thru axle. |
|
|

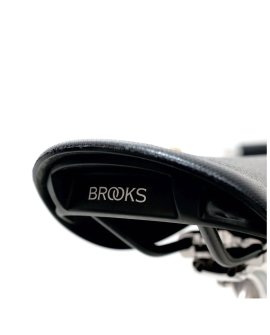

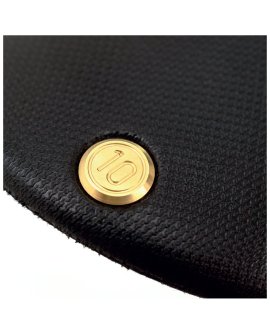

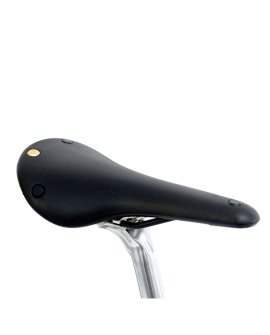

| Saddle | | | Brooks Cambium with unique ‘10’ roundel brass rivet. |
|
| |
|

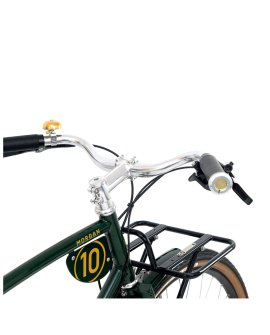

| Handlebar | | | GB polished aluminium dropped handlebars on an alloy a-head stem. |
|
| |
|

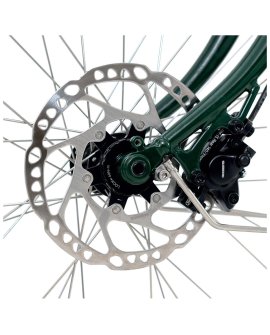

| Brakes | | Shimano Hydraulic brakes with 160mm centrelock rotors. |
|
| |
|
| Wheels | | 650b wheels, anodised aluminium tubeless ready rims stainless double butted spokes. |
|
| |
|
| Tyres | | | Panaracer Gravel King Semi Slick high volume tubeless ready tyres. |
|
| |
|
| Mudguards | | Aluminium full-length guards with stainless steel stays and mounting hardware. |
|
| |
|
| Pedals | | Alloy body with non-slip rubber inserts. |
|
| |
|
| Crankset | GB black 5 arm chainset with integrated chain disc. |
| Lights | | Optional lights available. |
|
| |
|

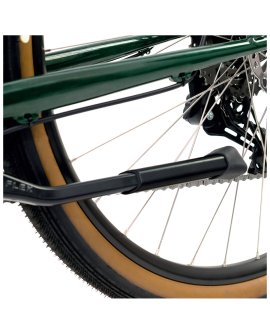

| Stand | Pletscher Optima Flex. |
| Bell | Brass 'ping' bell. |
| Grips | Hand-stitched black leather grips with unique Morgan styled aluminium end caps. |

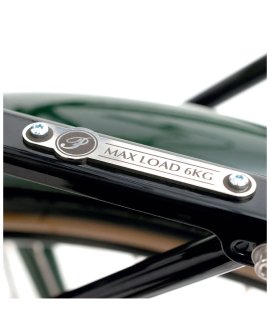

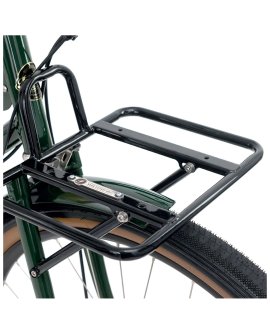

| Front Carrier | Unique hand brazed tubular steel front rack. |
| Rear Carrier | | |
|
| Lock | N/A |
| Other Features | Polished stainless steel mounting hardware
|
|
|
Product may have different configuration than the one in the pictures.
Sizing
The Pashley-Morgan comes in three frame sizes shown below, followed by their corresponding inside leg length range and stand-over height:
| Frame Size | Inside Leg Lengh | Stand-over height |
| S | 28-34" | 30" |
| M | 30-36" | 31.5" |
| L | 32-38" | 33" |
| | |
The frame size is the distance between the centrepoint of the cycle's bottom bracket (where the pedal arms extend from) and the top of the frame's seat tube (where the seatpost enters the frame).
Leg length should be measured from the sole of your foot to the inner top of your thigh (in inches) - please note that this is a different measurement to your trouser inside leg length. If your inside leg length falls in-between two frame sizes and you are unsure which size is best for you, please visit the Sizing Page for further guidance.
Sizing Info can be found here:
The stand-over height is the height from the ground to the top of the top-tube.
With centuries of combined heritage, craftsmanship and passion for their product, Pashley and Morgan are two “like minded” companies, making for the perfect opportunity to collaborate.

.
